Description

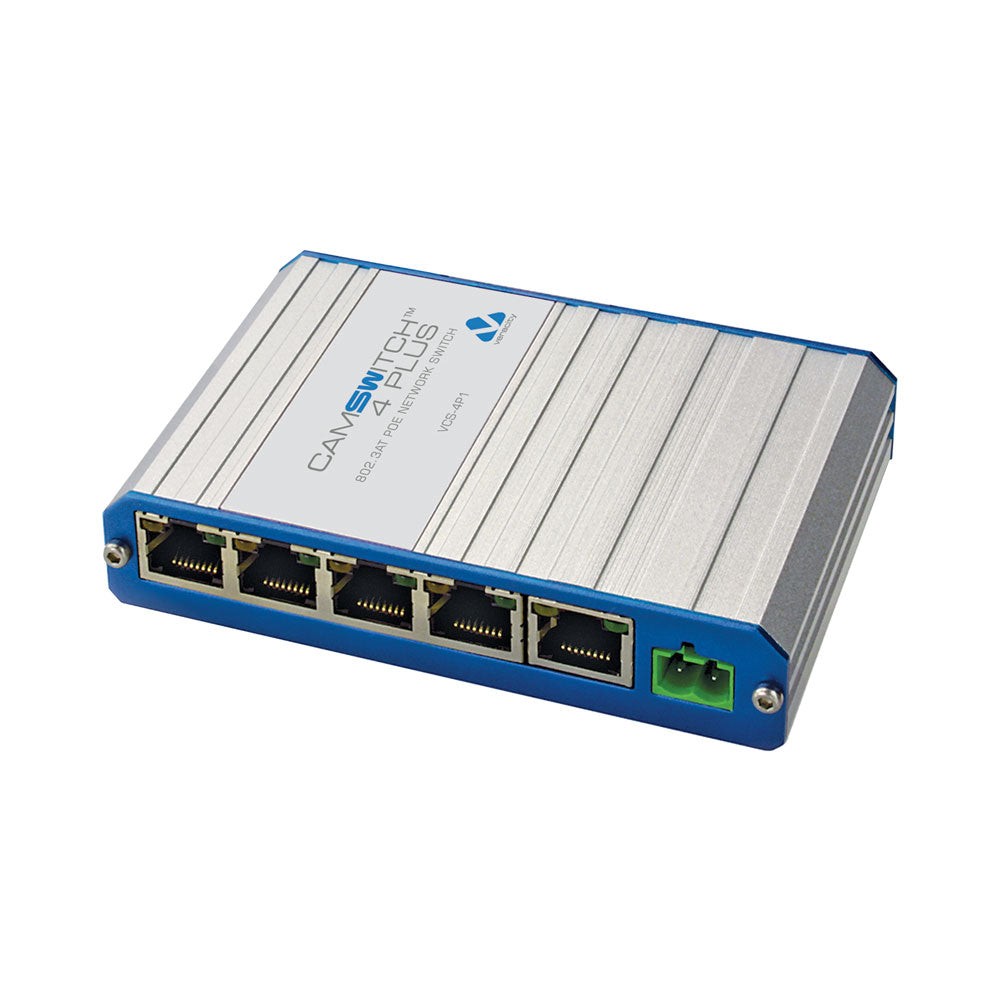

Veracity Camswitch 4 Plus
CAMSWITCH Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation. An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget.
CAMSWITCH 4 Plus features 4 802.3at POE ports, and a 5th port for downlink.
CAMSWITCH 8 Plus features 8 802.3at POE ports, as well as 2 further network ports, and is compatible with Veracity's rack-mounting system.
802.3at POE Power
CAMSWITCH Plus can deliver up to the full 25.5 watts required by IEEE 802.3at POE Plus devices such as outdoor or PTZ cameras. A selection of power supply options are available to suit the total power requirements and placement considerations of the installation.
40 watt and 78 watt camera/device power budgets are available from standard power supplies, or the full 200 watts for 8 POE Plus ports can be delivered using Veracity's forthcoming rackmount power solutions.
CAMSWITCH Plus can be powered by POE, doubling the distance to connected devices or enabling network connections to be easily added to existing installations. Up to 25 watts budget at 200 metres is available using Veracity's OUTSOURCE Plus injector.
When a 57V power supply is used, CAMSWITCH Plus can deliver enhanced POE to Veracity OUTREACH Max, HIGHWIRE PowerStar and LONGSPAN products for maximum range.
Designed for installers
Camswitch Plus's network ports configure automatically for speed, duplex and crossover, and deliver 802.3af/at POE to compliant devices with no user setup required.
Snap-on clips are provided for secure wall mounting, and up to 4 units can be mounted in an optional 1U rack bracket.
Applications:
IP Video:
CAMSWITCH Plus delivers a compact, reliable and scalable solution to IP video networking which can grow with the installation.
Wireless:
Power over Ethernet means that wifi access points and routers can be located optimally and moved easily. CAMSWITCH Plus extends this benefit to more devices and greater distances,
IP Telephony:
CAMSWITCH Plus provides a simple way to add IP telephones or additional network ports to existing network outlets, without requiring a mains power connection.
OEM/custom:
The versatile CAMSWITCH Plus platform can be customised to your needs. Enquire with Veracity for more details.
| SPECIFICTATIONS | |
| Network | 5/10 port unmanaged 10/100 switch Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables |
| Power | Device power 3W POE outputs: IEEE802.3af / IEEE802.3at compliant POE input: IEEE802.3af compliant / custom high power |
| Total Camera Power Budget: | 40 watts - VPSU-57V-800 power supply 78 watts - VPSU-57V-1500 power supply 25 watts - VOR-OSP POE injector 10 watts - 802.3af POE switch |
| Dimensions |
110 x 64 x 22mm |
