Description

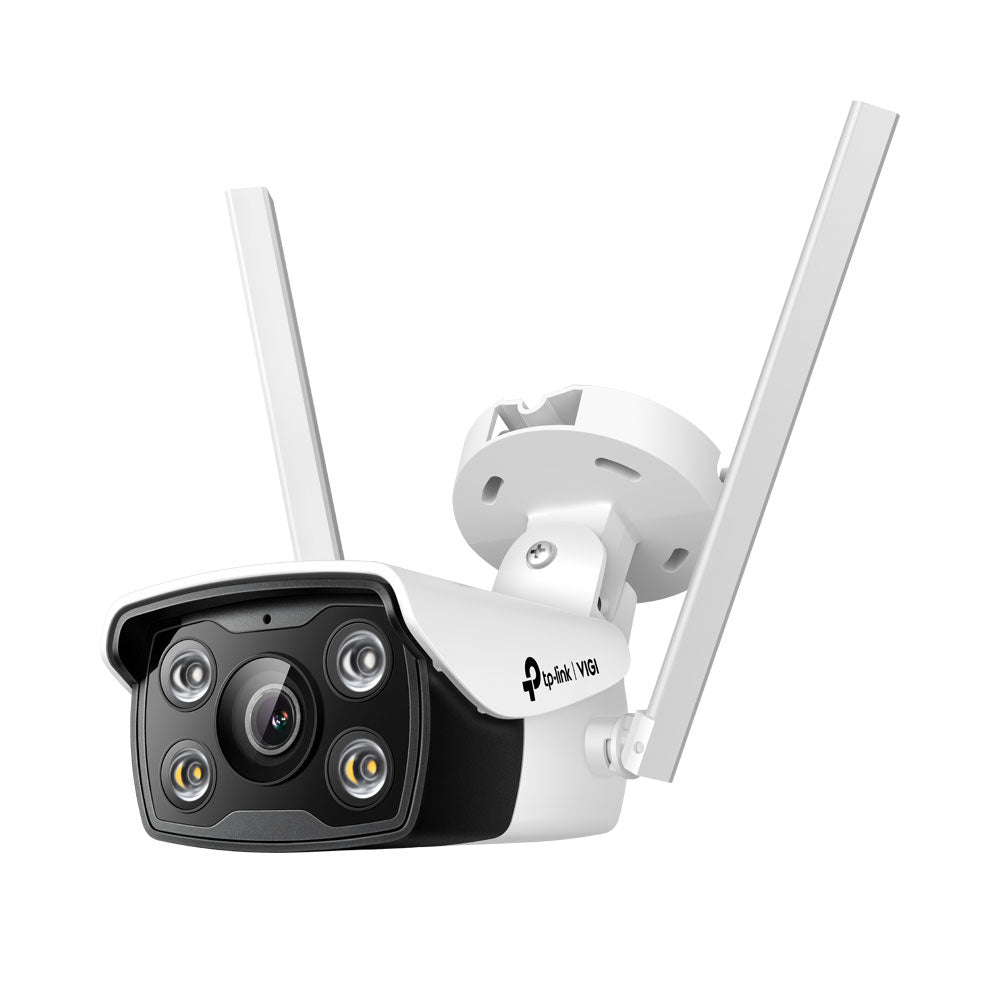

TP-Link VIGI C340-W 4MP Full-Colour Outdoor Wi-Fi Bullet Network Camera
All The Colours, All The Time
FEATURES:
- 4MP High Definition: The camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
- 24h Full-Colour: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
- Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals
- Waterproof: Reliable IP66 for stable outdoor performance
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set or obstructs the camera
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
- VIGI App: Manage your security from the palm of your hand with the VIGI app
SPECIFICATIONS:
| NETWORK | |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wireless Rate | 11 Mbps (802.11b) |
| 54 Mbps (802.11g) | |
| 150 Mbps (802.11n) | |
| Frequency | 2.4 GHz |
| Wireless Security | WPA/WPA2-PSK |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| GENERAL | |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Waterproof Cable Attachments | |
| Power Adapter | |
| Mounting Accessories (Screws, Drywall Anchors, Hex Key) | |
| Operating Temperature | -30–60°C |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| Dimensions( H X W X D ) | 80 x 70.6 x 173.4 mm |
| Material | Plastic |
| Weight | 195g |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Lens | Fixed focal lens (4mm) |
| Aperture | 4 mm: F1.6 |
| Lens Mount | M12 |
| Viewing Angle | (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Day/Night Mechanism | IR Cut Filter |
| IR Working Distance | 30m |
| Illumination Distance | 30m |
| Minimum Illumination | 0 lux with IR/white Light |
| Weatherproof Rating | IP66 |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| VIDEO/IMAGE | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| Frame Rate & Resolutions | Main Stream |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 | |
| Sub-Stream | |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 640x480, 352x288, 320x240 | |
| Video Streaming | Main Stream |
| Sub-Stream | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps | |
| SMART FEATURE-SET | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Button | Reset Button |
| Slot | Micro SD card |
