Description

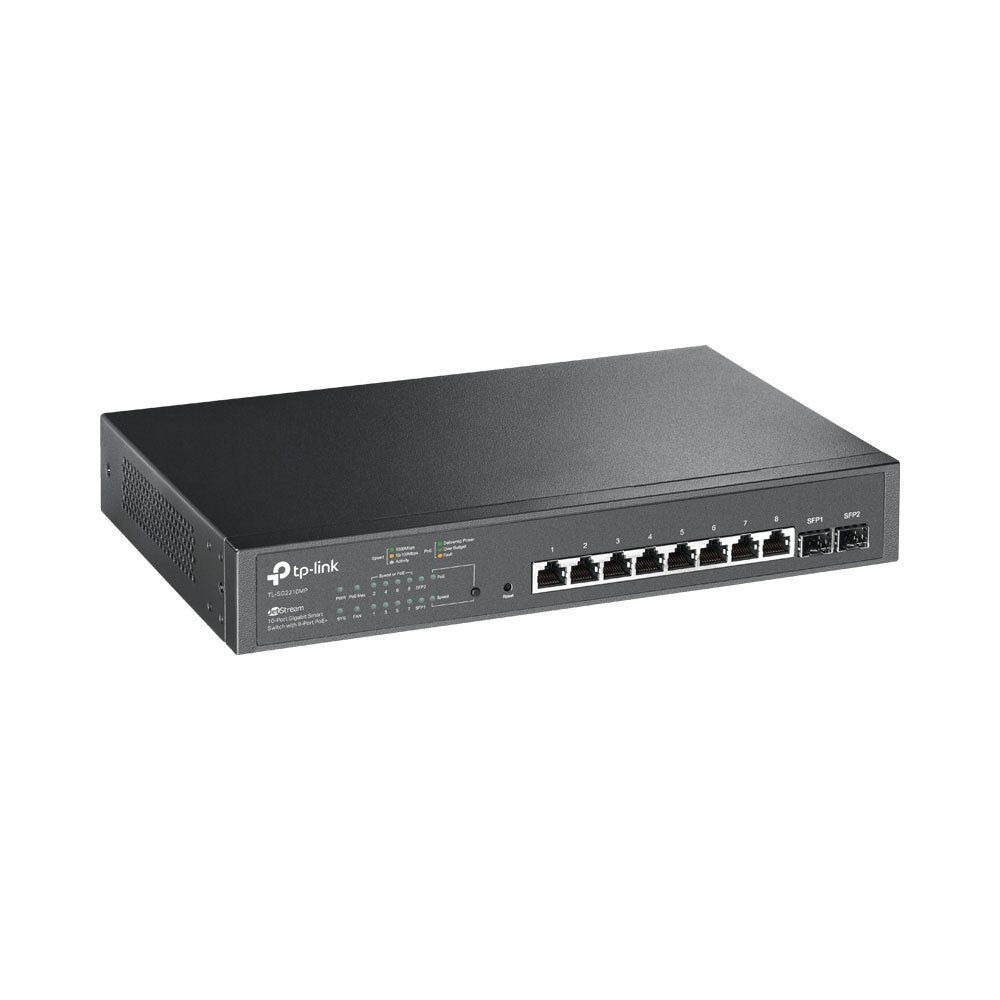

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Realize More Possibilities with Omada
- 150W PoE Budget: 8x 802.3at/af-compliant PoE+ ports with a total power supply of 150W
- Full Gigabit Ports: 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) |
| • 2× 100/1000 Mbps SFP Slots | |
| Network Media | • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) |
| • 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) | |
| • 100BASE-FX: MMF, SMF | |
| • 1000BASE-X: MMF, SMF | |
| Fan Quantity | 1 |
| Physical Security Lock | Yes |
| PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant |
| • PoE+ Ports: 8 Ports | |
| • Power Supply: 150 W | |
| Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • 15.61 W (220 V/ 50 Hz with no PD connected) |
| • 139.52 W (220 V/ 50 Hz with 150 W PD connected) | |
| Max Heat Dissipation | • 53.26 BTU/h (with no PD connected) |
| • 476.04 BTU/h (with 150 W PD connected) | |
| PERFORMANCE | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 512 KB |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/ DSCP priority |
| • 8 priority queues | |
| • Priority Schedule Mode | |
| - SP (Strict Priority) | |
| - WRR (Weighted Round Robin) | |
| • Queue Weight Config | |
| • Bandwidth Control | |
| - Port/Flow based Rating Limit | |
| • Smoother Performance | |
| • Actions for flows | |
| - Mirror(to supported interface) | |
| - Redirect(to supported interface) | |
| - Rate Limit | |
| - QoS Remark | |
| • Storm Control | |
| - Multiple Control Modes(kbps/ratio/pps) | |
| - Broadcast/Multicast/Unknown-Unicast Control | |
| L2 and L2+ Features | • DHCP Relay |
| - DHCP VLAN Relay | |
| • DHCP L2 Relay | |
| • Link Aggregation | |
| - Static link aggregation | |
| - 802.3ad LACP | |
| - Up to 8 aggregation groups and up to 8 ports | |
| per group | |
| • Spanning Tree Protocol | |
| - 802.1D STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: TC Protect, BPDU Filter/Protect, | |
| Root Protect | |
| • Loopback Detection | |
| • Flow Control | |
| - 802.3x Flow Control | |
| • Mirroring | |
| - Port Mirroring | |
| - CPU Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Flow-Based | |
| - Ingress/Egress/Both | |
| • Device Link Detect Protocol (DLDP) | |
| • 802.1ab LLDP/ LLDP-MED | |
| L2 Features | • Link Aggregation |
| - static link aggregation | |
| - Up to 8 aggregation groups and up to 8 ports per group | |
| - 802.3ad LACP | |
| • Spanning Tree Protocol | |
| - 802.1D STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect | |
| • Loopback Detection | |
| • Flow Control | |
| - 802.3x Flow Control | |
| • Mirroring | |
| - Port Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Flow-Based | |
| - Ingress/Egress/Both | |
| - CPU Mirroring | |
| • Device Link Detect Protocol(DLDP) | |
| L2 Multicast | • 512 IPv4,IPv6 shared multicast groups |
| • IGMP Snooping | |
| - IGMP v1/v2/v3 Snooping | |
| - Fast Leave | |
| - IGMP Snooping Querier | |
| - IGMP Authentication | |
| - Static Group Config | |
| • MLD Snooping | |
| - MLD v1/v2 Snooping | |
| - Fast Leave | |
| - MLD Snooping Querier | |
| - Static Group Config | |
| • Multicast VLAN Registration | |
| • Multicast Filtering | |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 |
| • Multicast Listener Discovery(MLD) Snooping | |
| • IPv6 neighbor discovery (ND) | |
| • Path maximum transmission unit (MTU) discovery | |
| • Internet Control Message Protocol (ICMP) version 6 | |
| • TCPv6/UDPv6 | |
| • IPv6 applications | |
| - DHCPv6 Client | |
| - Ping6 | |
| - Tracert6 | |
| - Telnet(v6) | |
| - IPv6 SNMP | |
| - IPv6 SSH | |
| - IPv6 SSL | |
| - Http/Https | |
| - IPv6 TFTP | |
| VLAN | • VLAN Group |
| - Max. 4K VLAN Groups | |
| • 802.1Q tag VLAN | |
| • MAC VLAN | |
| • Protocol VLAN | |
| • GVRP | |
| • Voice VLAN | |
| Access Control List | • Support up to 230 entries |
| • Time-Range | |
| - Time Slice | |
| - Week Time-Range | |
| - Absolute Time-Range | |
| - Holiday | |
| • Time-based ACL | |
| • MAC ACL | |
| - Source MAC | |
| - Destination MAC | |
| - VLAN ID | |
| - User Priority | |
| - Ether Type | |
| • IP ACL | |
| - Source IP | |
| - Destination IP | |
| - IP Protocol | |
| - TCP Flag | |
| - TCP/UDP Source Port | |
| - TCP/UDP Destination Port | |
| - DSCP/IP TOS | |
| • IPv6 ACL | |
| • Combined ACL | |
| • Rule Operation | |
| - Permit/Deny | |
| • Policy Action | |
| - Mirror | |
| - Rate Limit | |
| - Redirect | |
| - QoS Remark | |
| • ACL Rules Binding | |
| - Port Binding | |
| - VLAN Binding | |
| Security | • AAA |
| • 802.1X | |
| - Port based authentication | |
| - MAC(Host) based authentication | |
| - Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP | |
| - MAB | |
| - Guest VLAN | |
| - Support Radius authentication and accountability | |
| • IP/IPv6-MAC Binding | |
| - 512 Binding Entries | |
| - DHCP Snooping | |
| - DHCPv6 Snooping | |
| - ARP Inspection | |
| - ND Detection | |
| • IP Source Gurad | |
| - 253 Entries | |
| - Source IP+Source MAC | |
| • IPv6 Source Gurad | |
| - 183 Entries | |
| - Source IPv6 Address+Source MAC | |
| • DoS Defend | |
| • Static/Dynamic/Permanent Port Security | |
| - Up to 64 MAC addresses per port | |
| • Broadcast/Multicast/Unicast Storm Control | |
| - kbps/ratio/pps control mode | |
| • Port Isolation | |
| • Secure web management through HTTPS with SSLv3/TLS1.0 | |
| • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
| • IP/Port/MAC based access control | |
| MIBs | • MIB II (RFC1213) |
| • Interface MIB (RFC2233) | |
| • Ethernet Interface MIB (RFC1643) | |
| • Bridge MIB (RFC1493) | |
| • P/Q-Bridge MIB (RFC2674) | |
| • RMON MIB (RFC2819) | |
| • RMON2 MIB (RFC2021) | |
| • Radius Accounting Client MIB (RFC2620) | |
| • Radius Authentication Client MIB (RFC2618) | |
| • Remote Ping, Traceroute MIB (RFC2925) | |
| • Support TP-Link private MIBs | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features | • Web-based GUI and CLI management |
| • SNMPv1/v2c/v3 | |
| • SNMP Trap/Inform | |
| • RMON (1,2,3,9 groups) | |
| • SDM Template | |
| • DHCP/BOOTP Client | |
| • Dual Image, Dual Configuration | |
| • CPU Monitoring | |
| • Cable Diagnostics | |
| • EEE | |
| • System Log | |
| • 802.1ab LLDP/ LLDP-MED | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG2210MP |
| • Power Cord | |
| • Installation Guide | |
| • Resource CD | |
| • Rackmount Kit | |
| • Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–50 ℃ (32–122 ℉); |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
