Description

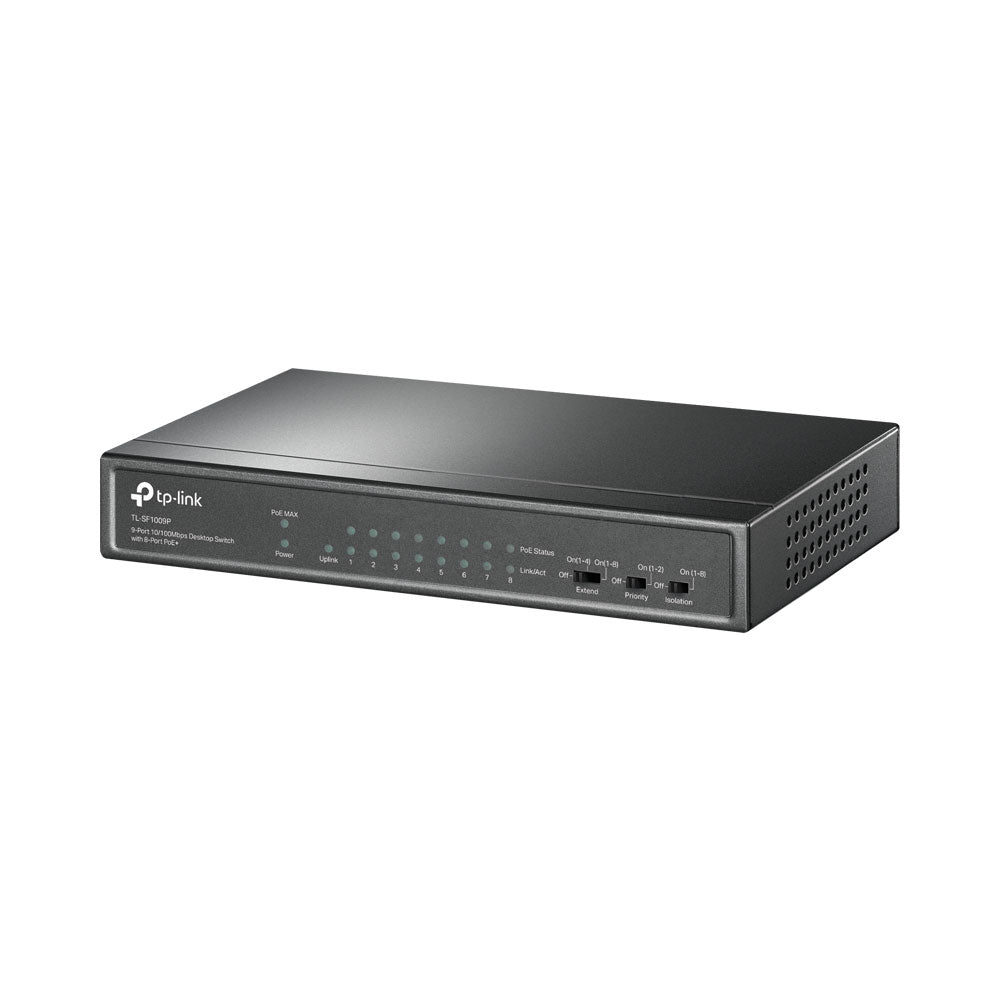

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
- 9x 10/100 Mbps RJ45 ports
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports
- Up to 250 m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play with no configuration required
| HARDWARE FEATURES | |
| Interface | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) |
| • AUTO Negotiation | |
| • AUTO MDI/MDIX | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 1.3392 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant |
| • PoE Ports: Ports 1–8 | |
| • Power Supply: 65 W | |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.8 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption | • 3.6 (220/50 Hz. no PD connected) |
| • 77.08 (220/50 Hz. with 65 W PD connected) | |
| Max Heat Dissipation | • 12.28 BTU/h (no PD connected) |
| • 262.84 BTU/h (with 65 W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs |
| • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) | |
| • Priority Mode Button (Ports 1–2) | |
| • Isolation Mode Button (Ports 1–8) | |
| • Mac Address Auto-Learning and Auto-Aging | |
| • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode | |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SF1009P |
| • Power Adapter | |
| • Installation Guide | |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
