Description

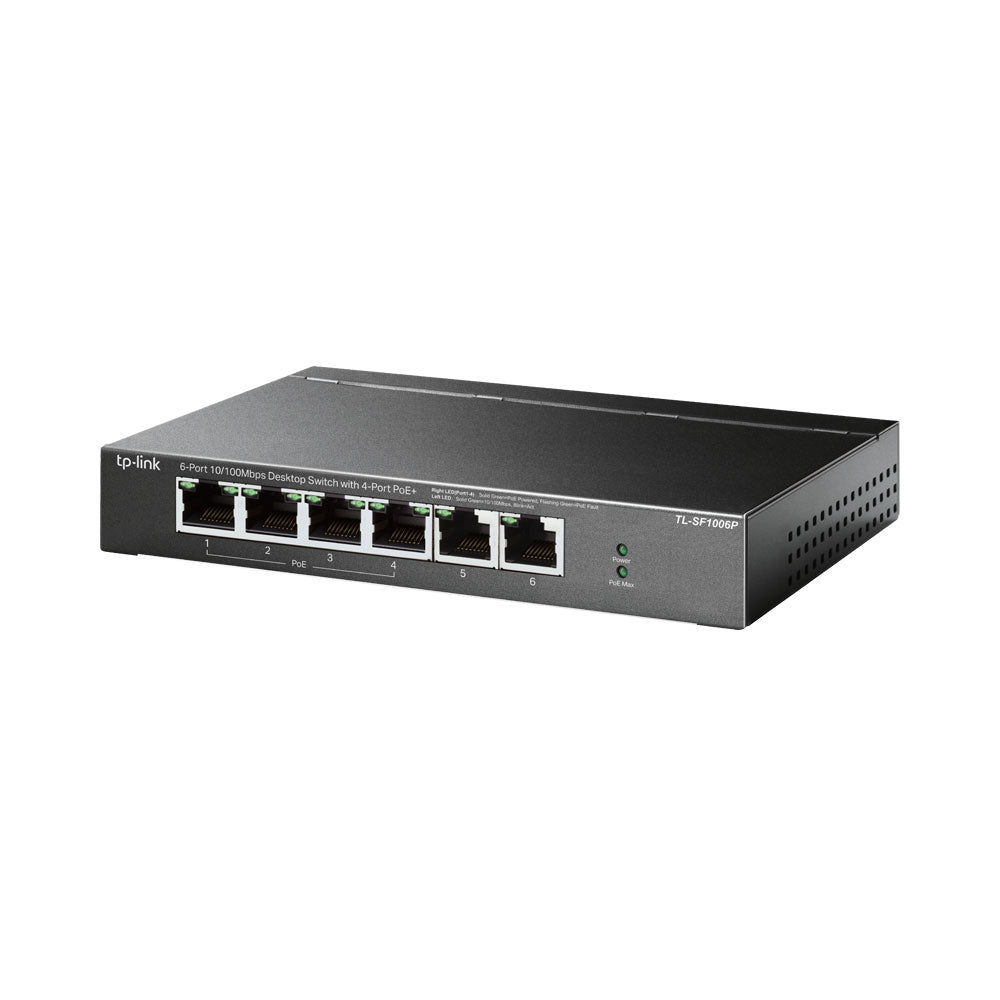

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
Professional High-Power Switch with 4 PoE+ Ports
- 6x 10/100 Mbps RJ45 ports
- 4x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports
- Plug and play with no configuration required
| HARDWARE FEATURES | |
| Interface | • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) |
| • AUTO Negotiation | |
| • AUTO MDI/MDIX | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.8928 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant |
| • PoE Ports: Ports 1–4 | |
| • Power Supply: 67 W | |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Max Power Consumption | • 1.9 W (220 V / 50 Hz, no PD connected) |
| • 74 W (220 V / 50 Hz, with 67 W PD connected) | |
| Max Heat Dissipation | • 6.48 BTU/h(no PD connected) |
| • 252.34 BTU/h(with 67 W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs |
| • Extend Mode Button (Ports 1–4) | |
| • Priority Mode Button (Ports 1–2) | |
| • Mac Address Auto-Learning and Auto-Aging | |
| • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode | |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SF1006P |
| • Power Adapter | |
| • Installation Guide | |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
