Description

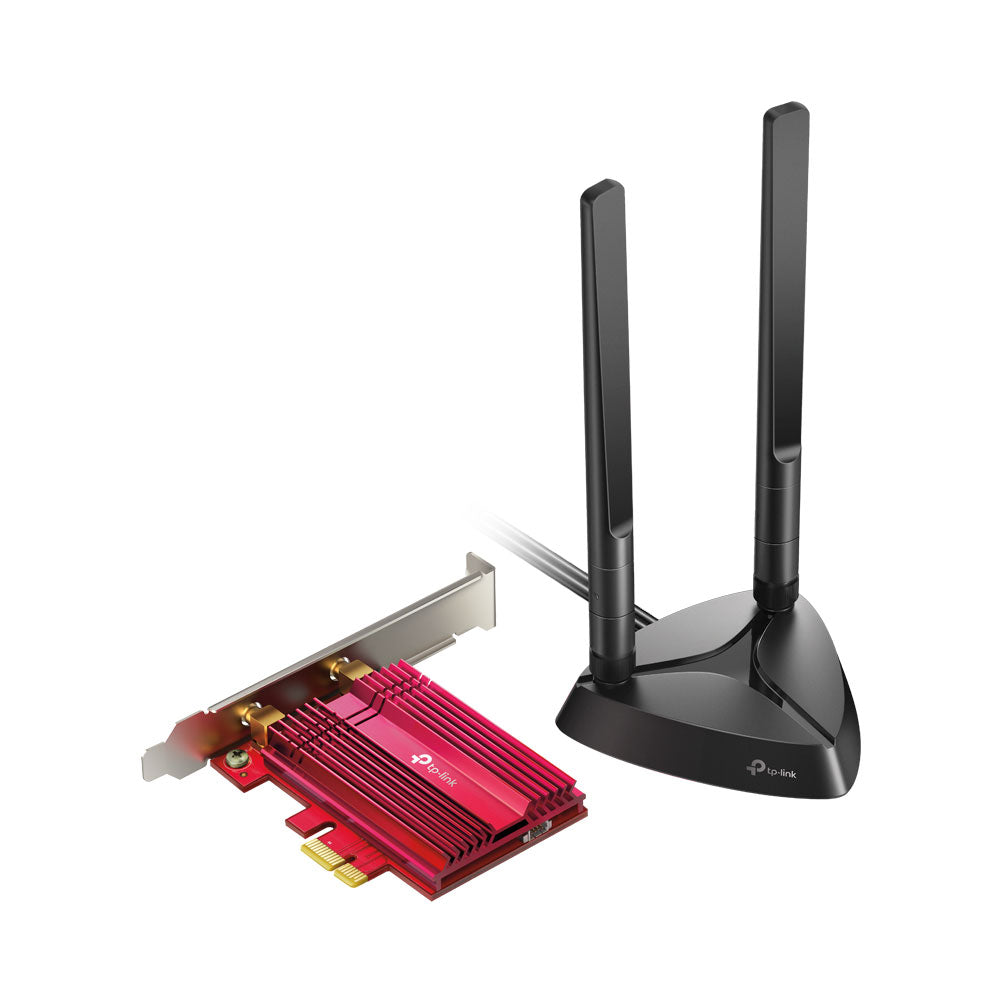

TP-Link AX3000 WI-FI 6 and Bluetooth 5.0 Combo PCI Express Card (Archer TX3000E)
- Unrivaled Wi-Fi 6 Speed - Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience - 75% lower latency ensures ultra-responsive real-time gaming
- Reliable Connections Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
- Wider Signal Coverage - Two multi-directional antennas with magnetized base are designed for optimum signal reception
- Bluetooth 5.0 - The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
- Improved Security - The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Fine Crafting - Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility - Full support for 802.11ac/a/b/g/n standards
| HARDWARE FEATURES | |
| Dimensions | 3.7 x 4.8 x 0.8 in |
| (95.2 x 120.8 x 21.5 mm) | |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Magnetized Antenna Base | |
| Chipset | Intel Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/g/b 2.4 GHz | |
| Bluetooth 5.0/4.2/4.0 | |
| WLAN Signal Rate | 5 GHz |
| 11ax: Up to 2402 Mbps(dynamic) | |
| 11ac: Up to 1733 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz | |
| 11ax: Up to 574 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| WLAN Reception Sensitivity | 5 GHz : |
| 11ax HT160：-56.25dBm | |
| 11ax HT80: -59dBm | |
| 11ax HT40: -62.25dBm | |
| 11ax HT20: -65dBm | |
| 11ac HT160：-62dBm | |
| 11ac HT80: -65.5dBm | |
| 11ac HT40: -69.75dBm | |
| 11ac HT20: -73.75dBm | |
| 11n HT40: -74.5dBm | |
| 11n HT20: -77.5dBm | |
| 11a 54Mbps: -77.75dBm | |
| 11a 6Mbps: -94.5dBm | |
| 2.4GHz : | |
| 11ax HT40: -60.75dBm | |
| 11ax HT20: -63.75dBm | |
| 11n HT40: -73dBm | |
| 11n HT20: -76.25dBm | |
| 11g 54Mbps: -76.5dBm | |
| 11b 11Mbps: -89dBm | |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP) | |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Bluetooth Profiles | Archer TX3000E support the native BT profiles implemented in Windows 10. |
| For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Archer TX3000E |
| Magnetized Antenna Base with 1m RF Cable | |
| Two 5 dBi High Gain Antennas | |
| Low-Profile Bracket | |
| Bluetooth Header Cable | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 10(64-bit) only |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
