Description

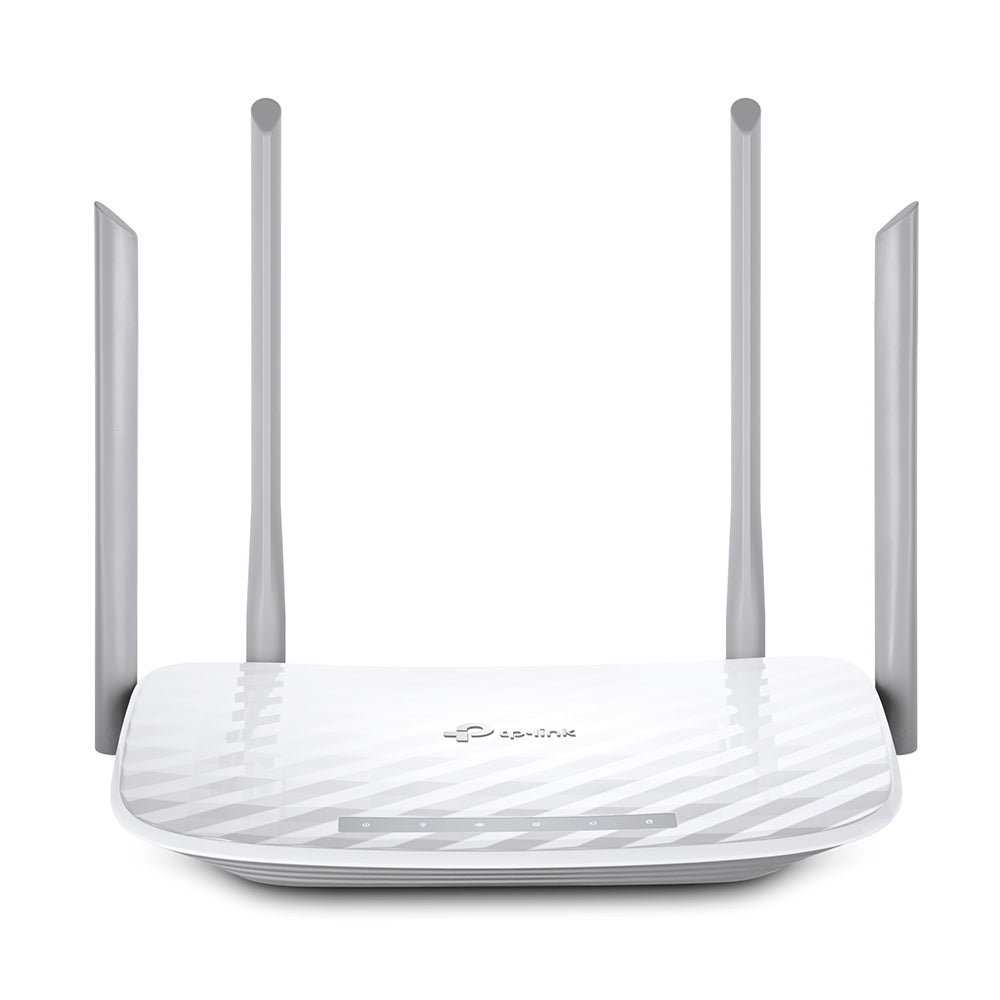

TP-Link Archer A5 AC1200 Wireless Dual Band Router
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
| HARDWARE FEATURES | |
| Interface | 4 10/100Mbps LAN Ports |
| 1 10/100Mbps WAN Port | |
| Button | Reset Button |
| WPS/Wi-Fi On/Off Button | |
| Power On/Off Button | |
| External Power Supply | 9VDC / 0.85A |
| Dimensions ( W x D x H ) | 9.1 x 5.7 x 1.5 in. (229.87 x 144.19 x 36.85 mm) |
| Antenna Type | 4 External Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b 2.4GHz |
| IEEE 802.11ac/n/a 5GHz | |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 867Mbps | |
| Reception Sensitivity | 5GHz: |
| 11a 54M: -73dBm | |
| 11ac VHT20 MCS8: -68dBm | |
| 11ac VHT40 MCS9: -64dBm | |
| 11ac VHT80 MCS9: -60dBm | |
| 2.4GHz: | |
| 11g 54M: -76dBm | |
| 11n HT20 MCS7: -74dBm | |
| 11n HT40 MCS7: -71d | |
| Transmit Power | CE: |
| <20dBm(2.4GHz) | |
| <23dBm(5GHz) | |
| FCC: | |
| <30dBm | |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ |
| BigPond/ /L2TP(Dual Access) /PPTP(Dual Access) | |
| Management | Access Control |
| Local Management | |
| Remote Management | |
| DHCP | Server, Client, DHCP Client List, |
| Address Reservation | |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access |
| Schedule, Rule Management | |
| Firewall Security | DoS, SPI Firewall |
| IP Address Filter/MAC Address Filter/Domain Filter | |
| IP and MAC Address Binding | |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network × 1 |
| 5GHz guest network × 1 | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | AC1200 Wireless Dual Band Router Archer A5 |
| Power supply unit | |
| Ethernet Cable | |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10 |
| MAC OS, NetWare, UNIX or Linux | |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
