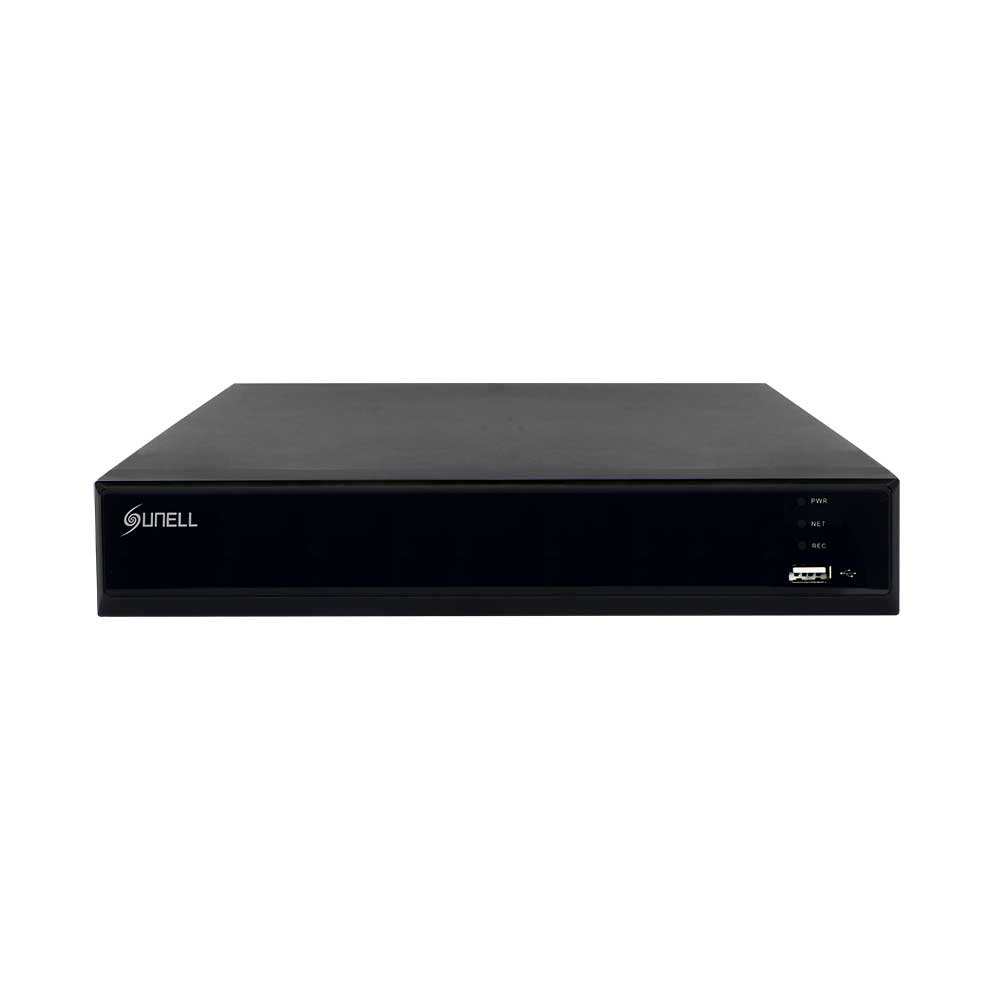

Sunell 8-Channel 1-Bay Network Video Recorder, 1X Lan, 8X Poe, H.265, Face Recognition (Sn-Nvr2608E1-P8E-J)
Description
Sunell 8-Channel 1-Bay Network Video Recorder, 1x Lan, 8x PoE, H.265, Face Recognition (SN-NVR2608E1-P8E-J)
- Up to 8ch IP cameras access
- 8ch picture stream face recognition
- Max 20 face pictures /sec processing
- Up to 16 face databases with 10,000 face images in total
- Support attendance management
- Smart search & playback
- Simultaneous HDMI&VGA up to 4K output
- 8ch PoE Ports
System | |
Main Processor | Dual-core embedded processor |
Operating System | Embedded LINUX |
Audio and Video | |
IP Camera Input | 8 Channel |
Two-way Talk | Yes |
Intelligent Video | Face Recognition, Attendance |
Face Recognition | |
Performance | Max 20 face pictures /sec processing |
4ch picture stream face recognition | |
Stranger Mode | Detect strangers' faces (not in device's face database) |
Similarity threshold can be set manually | |
AI Search | Search for image by image |
Search image by properties | |
Database Management | Up to 16 face databases with 10,000 face images in total |
Database Application | Every data can be applied to any channel |
Trigger Events | Buzzer, Alarm Out, compare the result simultaneously, etc. |
Display | |
Interface | 1 HDMI, 1 VGA |
Resolution | HDMI: 3840×2160,1920×1080,1440×900, |
1280×1024 | |
VGA: 1920×1080, 1280×1024, 1280×720 | |
Decoding Capacity | 1ch 12MP/4ch 8MP/8ch 4MP@30fps |
Multi-screen Display | 1/4/8 |
Recording | |
Compression | H.265/H.264 |
Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/ D1&etc. |
Record Rate | 80Mbps |
Bit Rate | 100Kbps ~ 8Mbps Per Channel |
Record Mode | Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in |
Record Interval | Post-record: 30 ~ 60 sec |
Video Detection and Alarm | |
Trigger Events | Recording, Buzzer, Push message, Pop up message. |
Video Detection | Motion Detection, Video Loss, Camera Tamper |
Alarm In/Out | 8/1 |
Playback and Backup | |
Sync Playback | 8/4/1 |
Search Mode | Time /Date, Alarm, Picture grid, Event |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom |
Backup Mode | USB Device |
Network | |
Interface | 1 RJ-45 port (10M/100Mbps) |
PoE Interface | 8ch 100Mbps, IEEE802.3af |
PoE Max Power | 80W |
Network Function | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP |
Optical Fiber Interface | N/A |
Max. User | Access 10 users |
Smart Phone | iPhone, iPad, Android |
Interoperability | ONVIF, SDK, CGI |
Storage | |
Internal HDD | 1 SATA Ports, up to 12TB for each HDD |
Mounting Mode | Embedded |
eSATA | N/A |
Interface | |
USB | 2 ports (USB 2.0 x1, USB3.0 x1) |
RS232 | N/A |
RS485 | N/A |
Audio I/O | 1ch MIC in, 1ch Audio line out |
Reset Button | N/A |
General | |
Power Supply | DC48V/2.5A |
Power Consumption | < 5W (without HDD) |
Operating Conditions | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
Storage Conditions | Less than 90% RH |
Certifications | CE/FCC |
Dimensions | 255×235×47.5mm |
Net Weight | 1kg |
