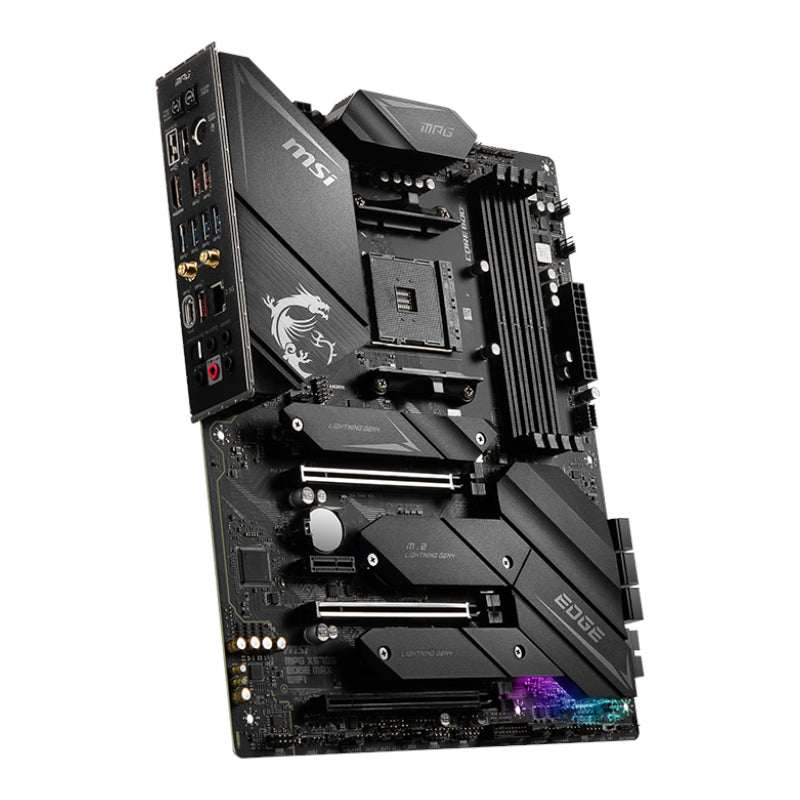

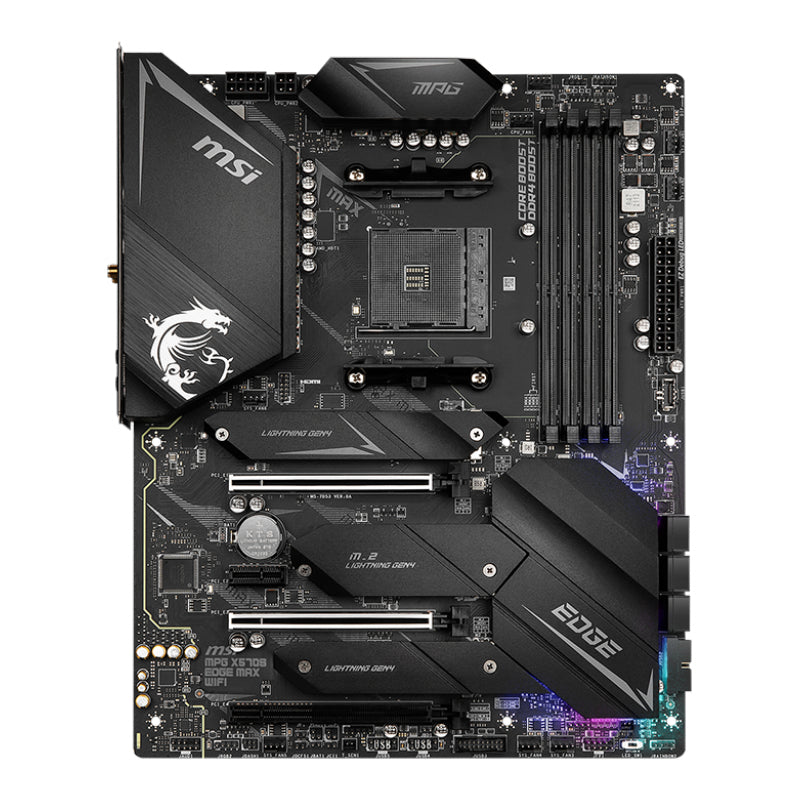

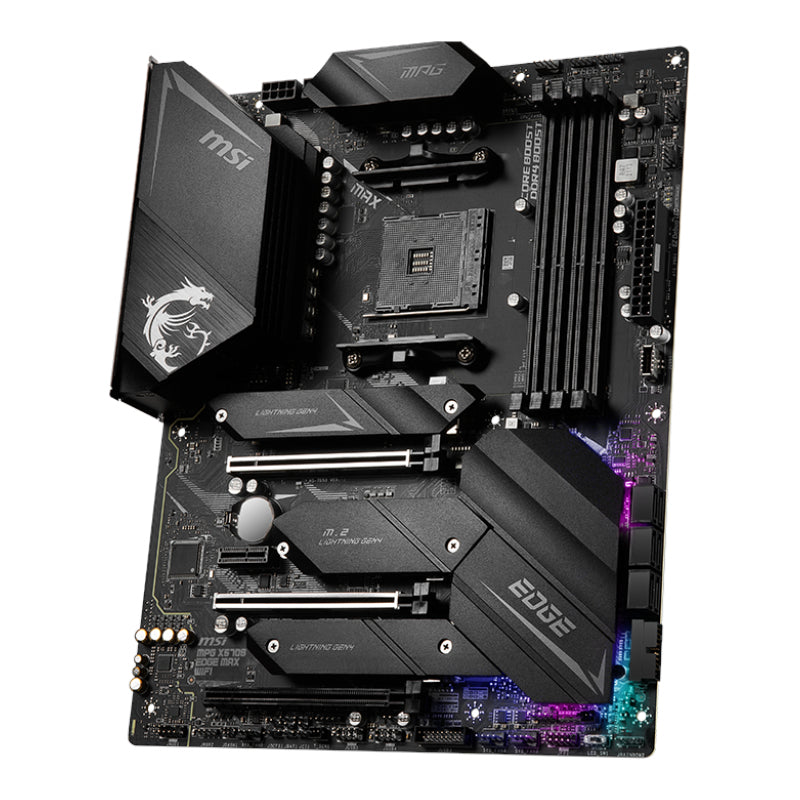

Description
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards.
High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
FEATURES:
- Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
- Supports DDR4 Memory, up to 5300+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Aluminum cover, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance
- Mystic Light: 16.8 million colours / 29 effects controlled in one click.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade-level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
SPECIFICATIONS:
- Socket: AMD Socket AM4
- CPU (Max Support): Ryzen 9
- Chipset: AMD® X570 Chipset
- DDR4 Memory: 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 3
- PCI-E x1: 1
- SATAIII: 6
- M.2 Slot: 3
- RAID: 0/1/10
- LAN: 1x Realtek® 8125B 2.5G LAN
- WiFi and Bluetooth: Intel® Wi-Fi 6E AX210
- USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)

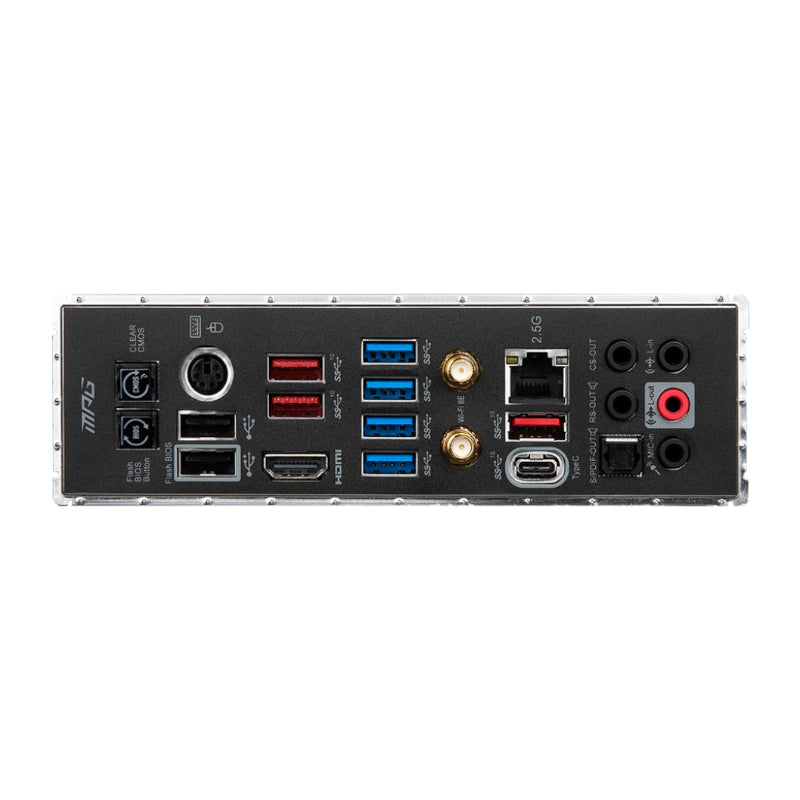

- USB 3.2 ports (Rear): 1(Gen 2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 2 (Type-A)
- Audio ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- Crossfire: Yes
- Operating System: Support for Windows® 10 64-bit

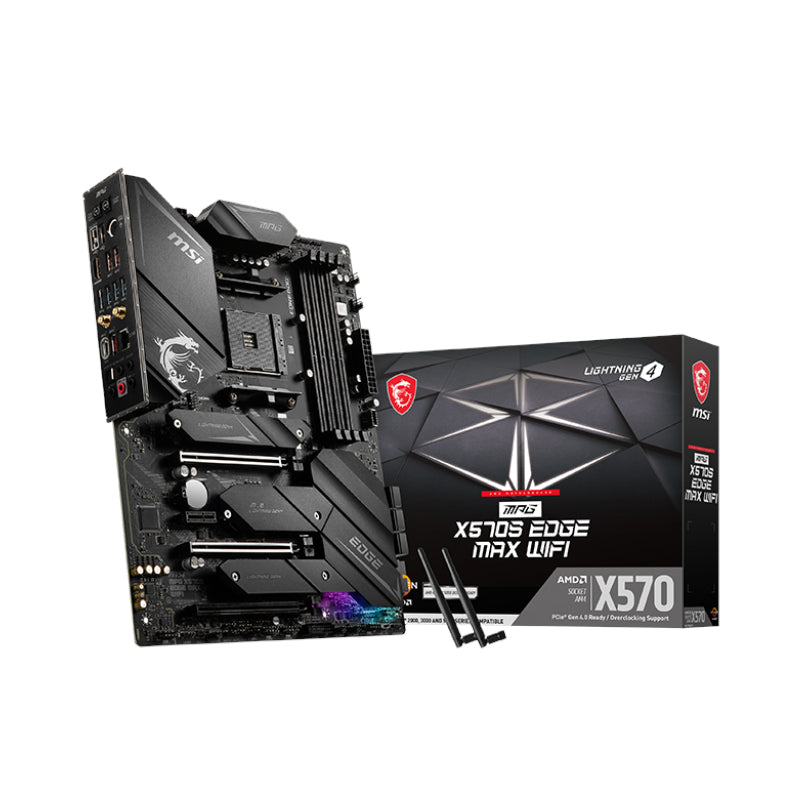

WHAT’S IN THE BOX:
- MSI MPG X570S EDGE MAX WIFI AM4 ATX Motherboard – Black x1
- WiFi Antenna x2
- SATA cables x2
- Standoff Screws/Sets x3
- USB Drive x1
- Cleaning Brush x1
- Thermistor Cable x1
- Rainbow RGB LED Extension Cable x1
- MPG Stickers Pack x1
- Quick Install Guide x1
- User Manual x1
