Description
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run at full speed with MSI motherboards.
High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced Audio, advanced LAN networking capabilities, USB and Mystic Light can turn any gaming experience into a more immersive one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
FEATURES:
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6400(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for high-performance systems
- 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use.
- Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe-based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel Armor PCIe slots. Supports AMD Crossfire™
SPECIFICATIONS:
- Socket: 1700
- CPU (Max Support): i9
- Chipset: Intel® Z690 Chipset
- DDR5 Memory: 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 3
- PCI-E x1: 1
- SATAIII: 6
- M.2 Slot: 4
- RAID: 0/1/5/10
- LAN: 1x Intel® I225-V 2.5G LAN
- Wi-Fi and Bluetooth: Intel® Wi-Fi 6E module
- USB 3.2 ports (Front): 1(Gen 2, Type-C), 2(Gen 1, Type A)

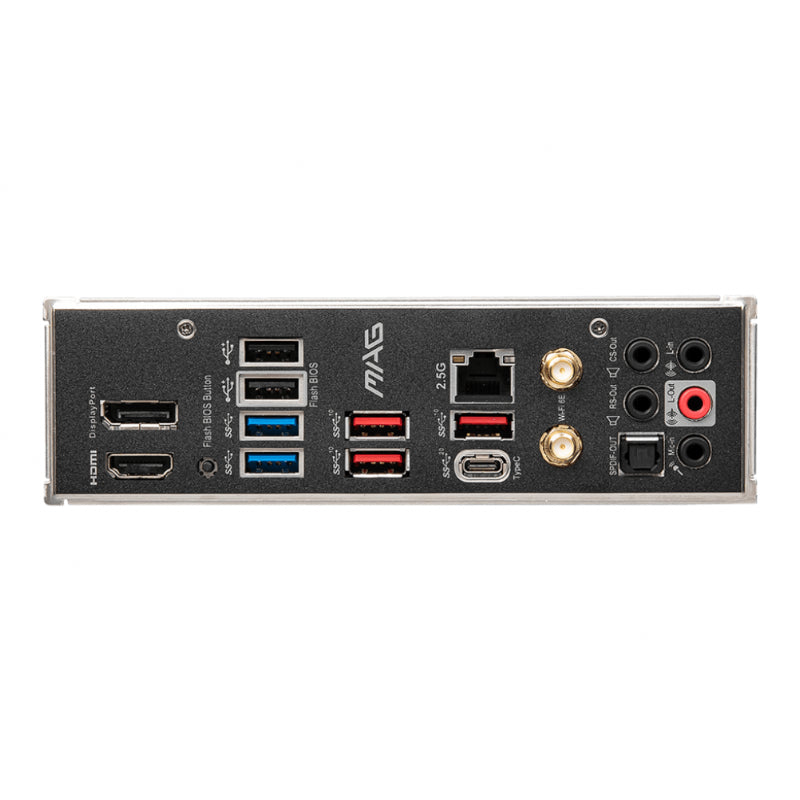

- USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 3(Gen 2, Type A), 2(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 2 (Type-A)
- Audio ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- Crossfire: Yes
- Operating System: Support for Windows® 10 64-bit

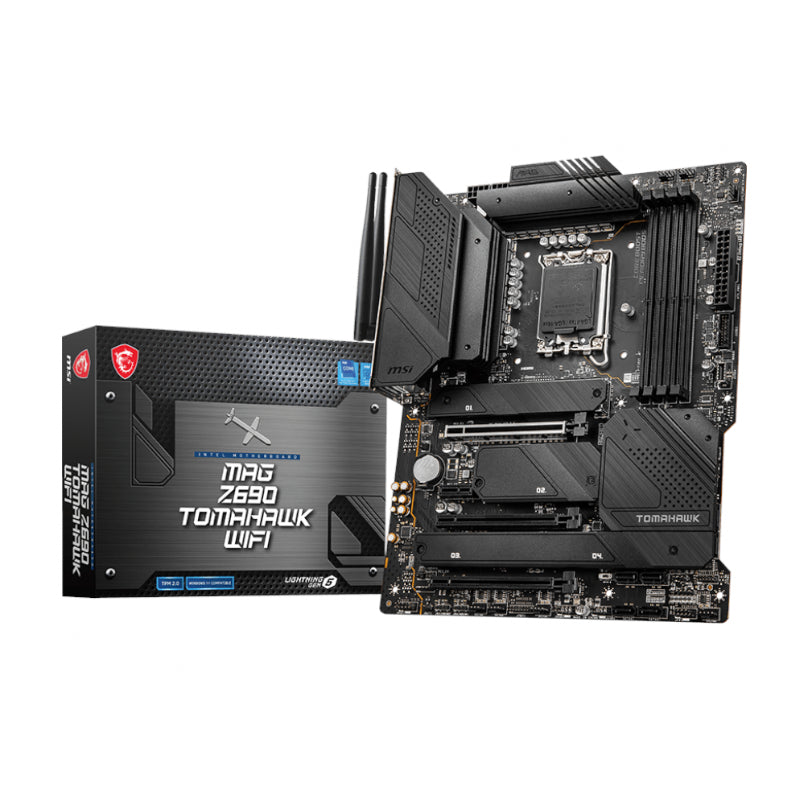

WHAT’S IN THE BOX:
- MSI MAG Z690 TOMAHAWK WIFI DDR5 LGA1700 ATX Motherboard – Black x1
- Wi-Fi Antenna x2
- SATA cables x2
- EZ M.2 Clip x1
- USB Drive x1
- MAG Stickers Pack x1
- Quick Install Guide x1
