Description

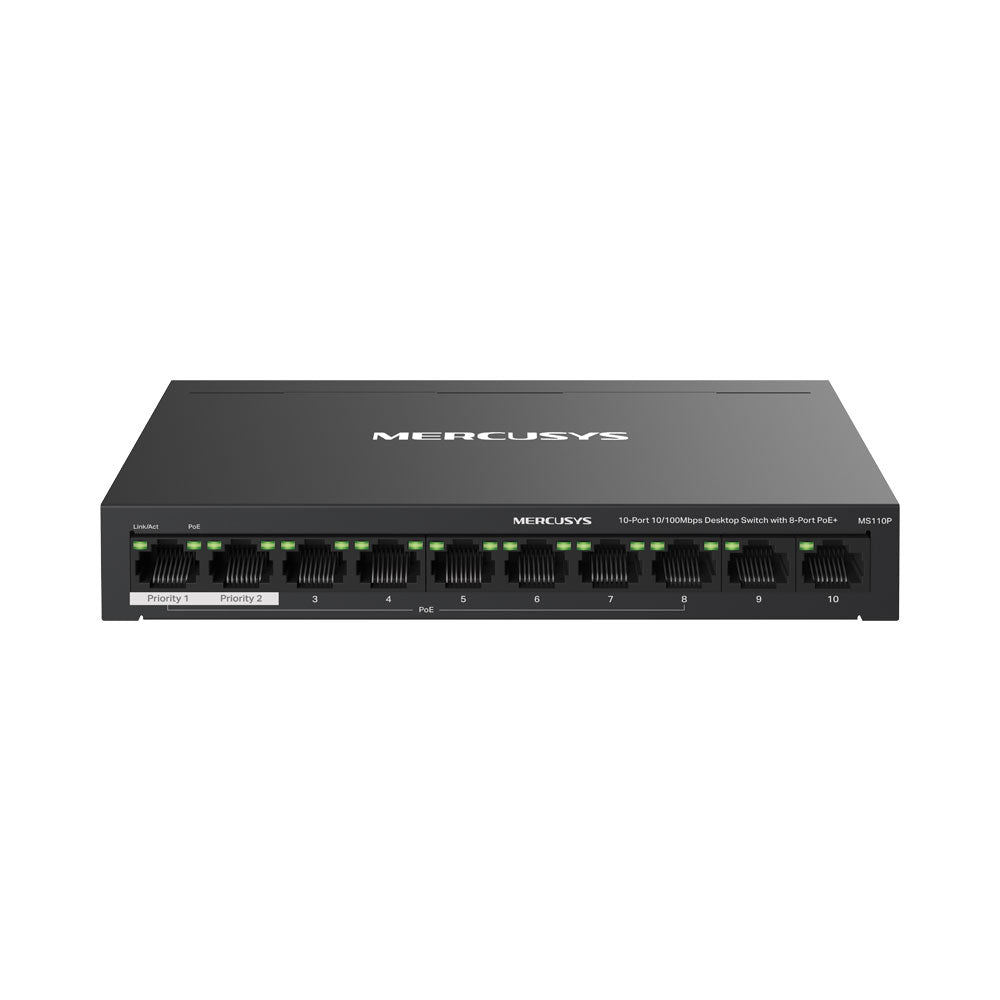

Mercusys MS110P | 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
8× PoE+ Ports (65W Budget) for Network Deployment
FEATURES:
- 10-Ports - 10× 10/100Mbps RJ45 ports with 8× PoE+ ports
- Two Cables in One - With 8× PoE+ ports, transfers data and power on one single cable
- High Power PoE+ - Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
- 2× Uplink Ports - MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to an NVR
- Long-Range up to 250m - Increases PoE transmission distance up to 250m in Extend Mode
- Isolation Mode - One click to divide traffic to specific ports for stability and security
- Compliant with Powered Devices - Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing - Allows for efficient heat dissipation and long network life
- Plug and Play - Simple to use and saves time and effort
- PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE powered devices
SPECIFICATIONS:
| HARDWARE | |
| Dimensions (W × D × H) | 171 × 98 × 27mm |
| PoE Ports | RJ45 |
| Standard: Compliant with 802.3 af/at Powered Devices | |
| PoE Ports: Port-1 to Port-8 | |
| PoE Power Budget: 65W | |
| Interfaces | 10× 10/100Mbps Ports, Auto-Negotiation, Auto MDI/MDIX |
| External Power Supply | External Power Adapter (Output: 53.5V 1.31A) |
| Installation | Desktop |
| Wall Mount | |
| Standards and Protocols | IEEE 802.3x Flow Control |
| Data Rates | 10/100Mbps at Half Duplex |
| 20/200Mbps at Full Duplex | |
| Jumbo Frame | 2KB |
| Mac Address Table | 2K |
| Max. Power Consumption | 10.064 BTH/h (no PD connected) |
| 263.568 BTH/h (with 65W PD connected) | |
| OTHERS | |
| Package Contents | 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P) |
| Power Adapter | |
| Quick Installation Guide | |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 10%~90% RH non-condensing | |
| Storage Humidity: 5%~95% RH non-condensing | |
