Description

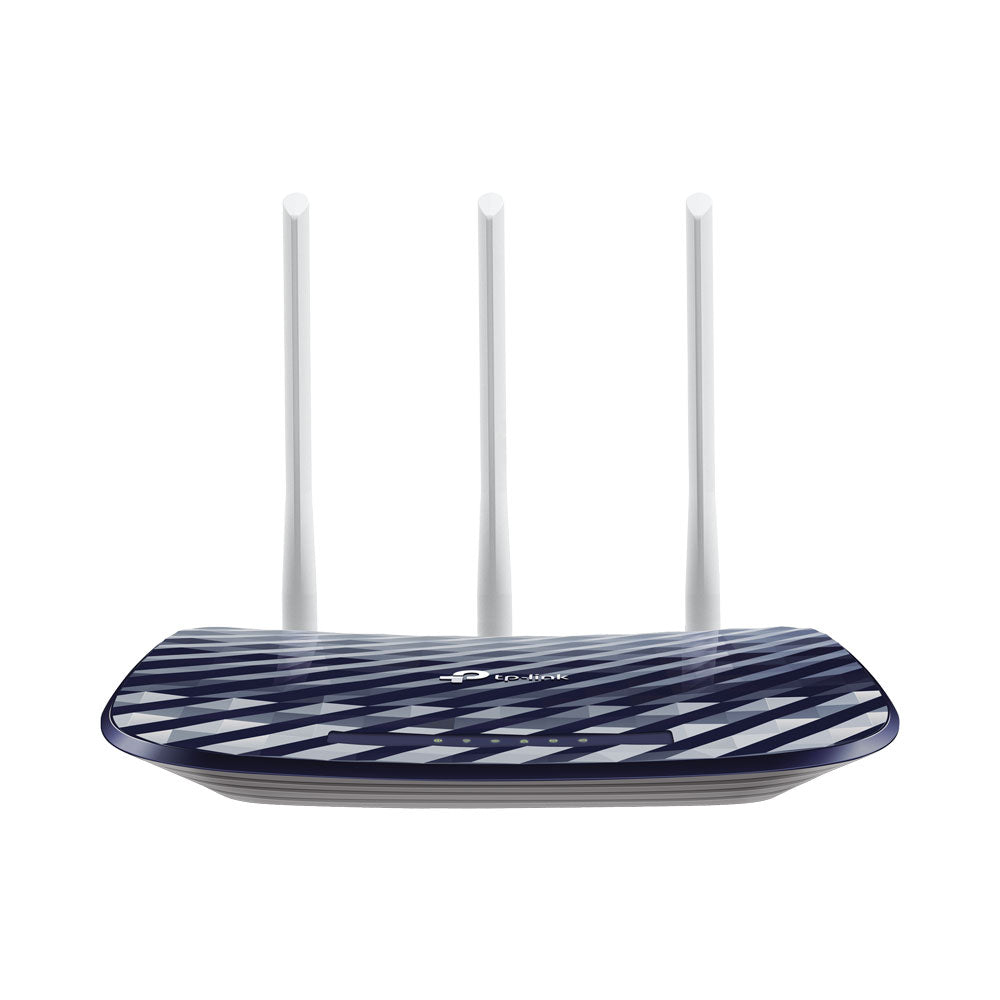

TP-Link EC120-F5 | AC750 Wireless Dual Band ISP Router
Ideal and Preconfigured for ISPs
FEATURES:
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- 3× external antennas provide stable omnidirectional signal and superior wireless coverage
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 4× 10/100Mbps LAN ports |
| 1× 10/100Mbps WAN port | |
| Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
| IEEE 802.11ac/n/a 5.0GHz | |
| Button | WPS/Wi-Fi Button Reset Button Power On/Off Button |
| External Power Supply | 9V 0.6A |
| Dimensions (W × D × H) | 230 × 144 × 35mm |
| Antenna | 2× 2.4GHz Antennas |
| 1× 5.0GHz Antenna | |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control |
| Management | Access Control Local Management Remote Management |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, OpenVPN |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | Support MultiSSID |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | AC750 Wireless Dual Band Router EC120-F5 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Cable Quick Installation Guide | |
| Packaging Dimensions (W × D × H) | 357 × 223 × 68mm |
| System Requirements | Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers Cable or DSL or Fiber Modem/Terminal Subscription with an Internet Service Provider (for Internet access) |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~60°C | |
| Operating Humidity: 10%–90% non-condensing | |
| Storage Humidity: 5%–90% non-condensing | |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | 2.4GHz: Up to 300Mbps |
| 5.0GHz: Up to 433Mbps | |
| Reception Sensitivity | 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm |
| 5.0GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm | |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
| Transmission Power | CE: <20dBm (2.4GHz) |
| CE: <23dBm (5.0GHz) | |
