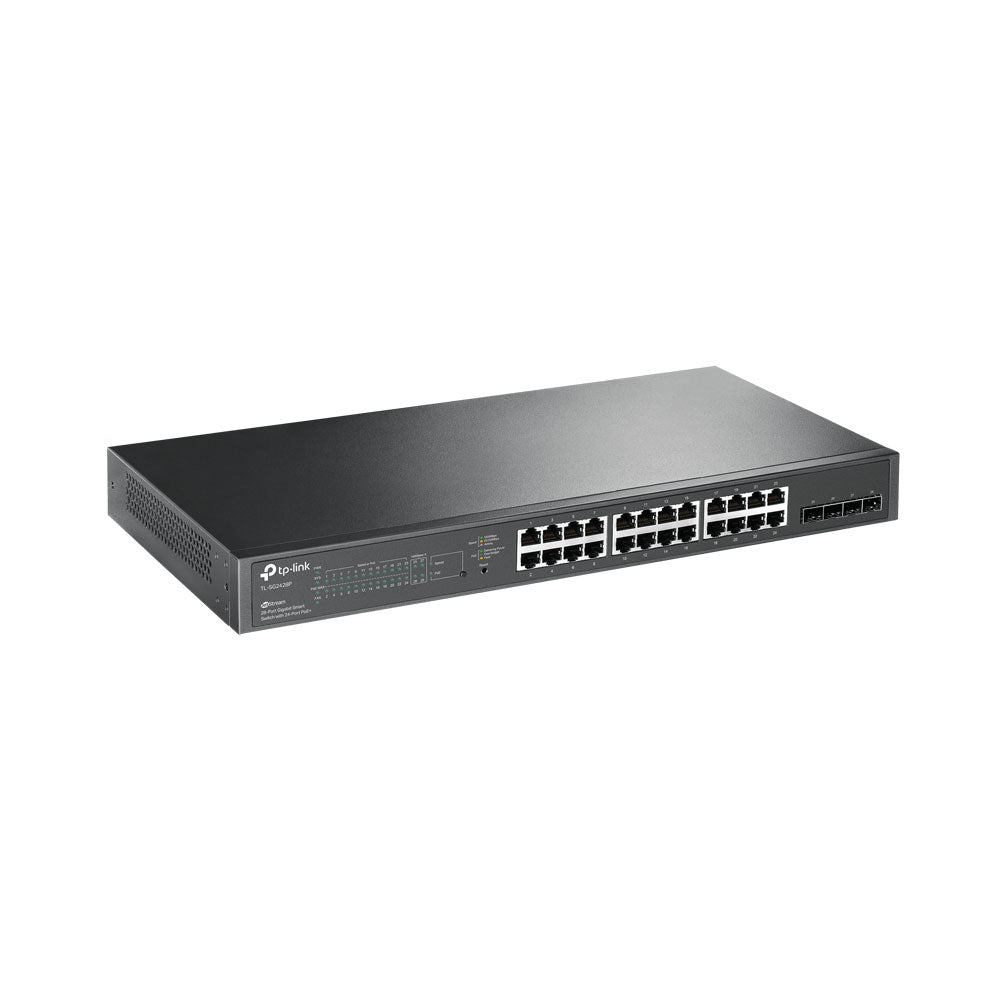

Tp-Link Tl-Sg2428P Jetstream 28-Port Gigabit Smart Switch With 24-Port Poe+
Description
TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
Realize More Possibilities with Omada
- 250W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250W
- Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
Interface | • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
• 4× Gigabit SFP Slots | |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) | |
• 1000BASE-X: MMF, SMF | |
Fan Quantity | 2 |
PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant |
• PoE+ Ports: 24 Ports | |
• Power Supply: 250 W | |
Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | • 32.1 W (110 V/ 60 Hz with no PD connected) |
• 308.6 W (110 V/ 60 Hz with 250 W PD connected) | |
Max Heat Dissipation | 109.53 BTU/h (with no PD connected) |
• 1052.94 BTU/h (with 250 W PD connected) | |
PERFORMANCE | |
Bandwidth/Backplane | 56 Gbps |
Packet Forwarding Rate | 41.7 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9KB |
SOFTWARE FEATURES | |
Quality of Service | • Support 802.1p CoS/DSCP priority |
• Support 8 priority queues | |
• Queue scheduling: SP, WRR, SP+WRR | |
• Port/Flow- based Rate Limiting | |
• IPv6 QoS | |
• Voice VLAN | |
L2 and L2+ Features | • Static Routing |
• DHCP Relay | |
• DHCP Server | |
• IGMP Snooping V1/V2/V3 | |
• 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) | |
• Spanning Tree STP/RSTP/MSTP | |
• BPDU Filtering/Guard | |
• TC/Root Protect | |
• Loopback detection | |
• 802.3x Flow Control | |
• LLDP, LLDP-MED | |
VLAN | • Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
• MAC/Protocol-based VLAN | |
Access Control List | • L2–L4 package filtering |
• MAC ACL | |
• IP ACL | |
• Combined ACL | |
• IPv6 ACL | |
Security | • AAA |
• Port Security | |
• DHCP Snooping | |
• IP-MAC-Port Binding | |
• IPv6-MAC-Port Binding | |
• ARP Inspection | |
• 802.1x and Radius Authentication | |
• SSH v1/v2 | |
• SSL v3/TLSv1.2 | |
• Broadcast/Multicast/Unknown-unicast Storm Control | |
• Dos Defend | |
IPv6 | • Dual IPv4/IPv6 stack |
• Multicast Listener Discovery (MLD) Snooping | |
• IPv6 neighbor discovery (ND) | |
• Path maximum transmission unit (MTU) discovery | |
• Internet Control Message Protocol (ICMP) version 6 | |
• TCPv6/UDPv6 | |
IPv6 Applications | • DHCPv6 Client |
• Ping6 | |
• Tracert6 | |
• Telnet (v6) | |
• IPv6 SNMP | |
• IPv6 SSH | |
• IPv6 SSL | |
• Http/Https | |
• IPv6 TFTP | |
MANAGEMENT | |
Omada App | Yes |
Centralized Management | • Omada Cloud-Based Controller |
• Omada Hardware Controller (OC300) | |
• Omada Hardware Controller (OC200) | |
• Omada Software Controller | |
Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features | • Web-based GUI and CLI management |
• SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs | |
• RMON (1, 2, 3, 9 groups) | |
• CPU Monitoring | |
• Port Mirroring | |
• Firmware Upgrade: TFTP & Web | |
• System Diagnose: VCT | |
• SYSLOG & Public MIBS | |
• Dual Image | |
• EEE | |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | TL-SG2428P |
• Power Cord | |
• Installation Guide | |
• Rackmount Kit | |
• Rubber Feet | |
System Requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | • Operating Temperature: 0–50 ℃ (32–122 ℉); |
• Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
• Operating Humidity: 10–90% RH non-condensing | |
• Storage Humidity: 5–90% RH non-condensing |
